Capflow32: Proprietary & Institutional Level Trading Software

Capital Flow 32 is a data organization/signal generating tool which commenced development in 1998 and was completed in 2002. As with Capital Flow 3.8x price data is inputted into the system and segmented via proprietary algorithms to create a unique database. Additional information has been coded into the software to generate a directional bias for the contracts monitored based upon user input.
Volume studies can then overlay the volume database to generate trade signals. The utility and functionality of this program goes far beyond a database, volume triggers and a directional bias. From opening up contracts in Longevity dates mode which gives a perspective of duration or trend, to systems creation and the interface to Trading Technologies order routing front end, this program offers a turn key solution to trading.

‘Dial In’ Market Conditions with Patented Algorithms

Capflow32 utilizes the Market Profile™ as the input medium and allows the user to ‘dial in’ the parameters for the patented algorithm to create a database which is representative of the timeframe the trader wants to trade.

Contact For a Demo Now

See Market Activity with Clarity

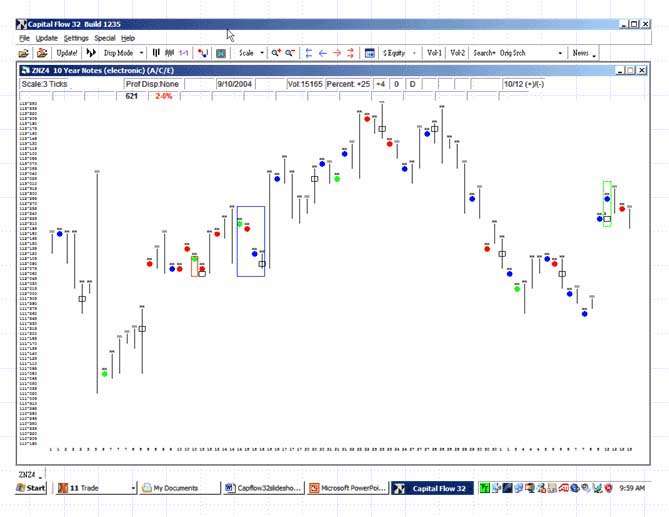

After the profiles are segmented creating a unique database, the user inputs the parameters which will code the profiles based upon the degree of horizontal. This coding process generates a display consisting of colored balls and vertical lines which we call the ‘Market Activity’ display.

Check it out & Contact Today

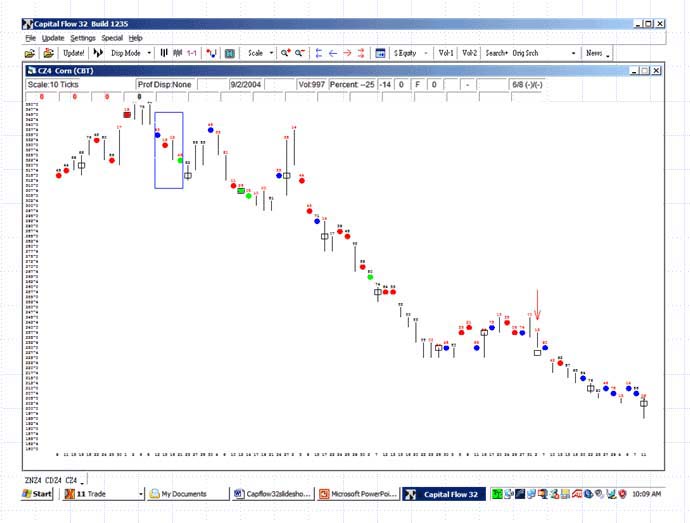

Reliable Directional Signals

The segmentation and coding function generate a directional bias, the program’s most basic trigger. Other unique tools can overlay this trigger to create a more robust signal.

Learn More Today

Unique Volume Databases

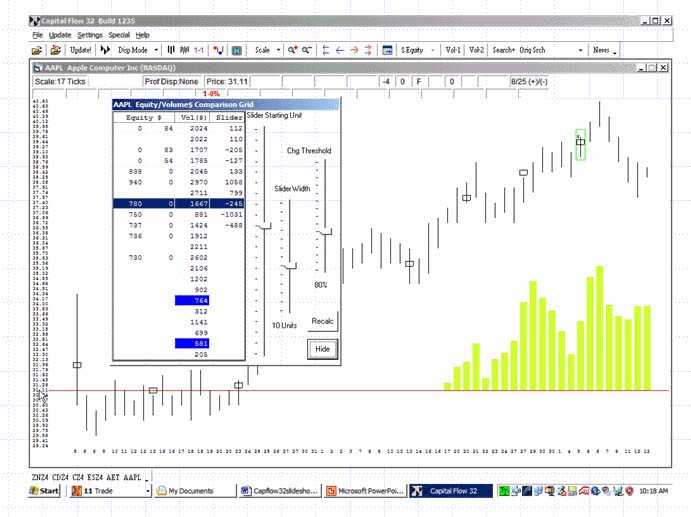

In addition to creating a unique price database with the patented algorithm, we also create a volume database. A volume database which is generated from volume at time and not the standard volume at price (LDB report). Volume for each half-hour segment (for the standard Market Profile™) is assigned a direction based upon a rotation factor and a ’net’ volume$ (volume dollar) number is generated for each data segment. This information can be displayed in a spreadsheet or histogram type display.

Contact For a Demo Now

Find the Best Opportunities

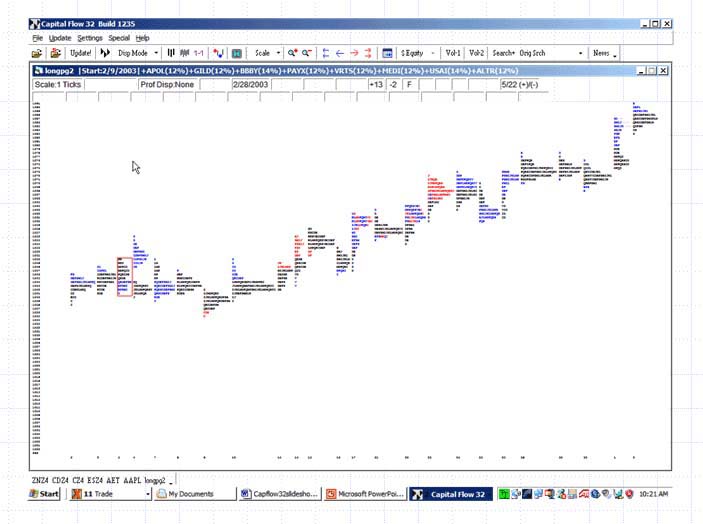

With the creation of unique volume and price databases we use the processing power of the computer to monitor a huge database of contracts searching for the ‘best’ opportunity based upon our criterion of a trade setup. From the universe of ‘hits’ we are then able to create a product (index) of the selected contracts (stocks and commodities) we wish to trade with a bias and weighting. From this product comes our ultimate goal of cash flow.

See How & Contact Today

Capflow32 Software Features

Volume Visualization

Visualize and observe ‘value areas’ with distributions from statistics. Identify point-of-controls (POCs) and understand when we are breaking out vs breaking down.

Pg2 Mark Indicator

Proprietary pg2 mark indicator identifies an area of balance and the opportunity for a vertical move. Profit and capture moves with a high degree of certainty.

High Volume Indicator

Proprietary high-volume indicator shows the last 4 highest volume periods over the recent sampling. Providing objectives to trade against and with.

F10 Screens

F10 screens refers to a proprietary intermediate/long-term ’trend’ view of the market. Highlighting areas of minus development.

Capital Flow

Proprietary indicator to indentify overall capital in-flows and out-flows in a particular equity. Learn to spot if money is coming in or out of your underlying.

Data Segmentation

Few market software can say they can organize market data & segment it to properly. Learn to use the one and only Capflow32™ & quantify markets.


# Capflow32 Market Profile™ Software
Capital Flow 32 is a data organization/signal generating tool which commenced development in 1998 and was completed in 2002. As with Capital Flow 3.8x price data is inputted into the system and segmented via proprietary algorithms to create a unique database. Additional information has been coded into the software to generate a directional bias for the contracts monitored based upon user input.

One of the most significant differences between the two programs is the introduction of on line volume for electronically traded futures contracts and all stocks. This allows for the creation of an entirely new database, one of volume. Volume studies can then overlay the volume database to generate trade signals. The utility and functionality of this program goes far beyond a database, volume triggers and a directional bias. From opening up contracts in Longevity dates mode which gives a perspective of duration or trend, to systems creation and the interface to Trading Technologies order routing front end, this program offers a turn key solution to trading.

Market Profile™, a hybrid of the statistical bell curve, is a form of technical analysis that was jointly developed by renowned trader, software developer and author J. Peter Steidlmayer and the Chicago Board of Trade. Over the years this unique tool has helped traders gain unparalleled understanding of markets, as well as find profitable trading opportunities. Simple in concept yet complex in detail, Market Profile™ organizes a number of elements into a rapidly understood graphic form – revealing trading opportunities other methodologies miss.

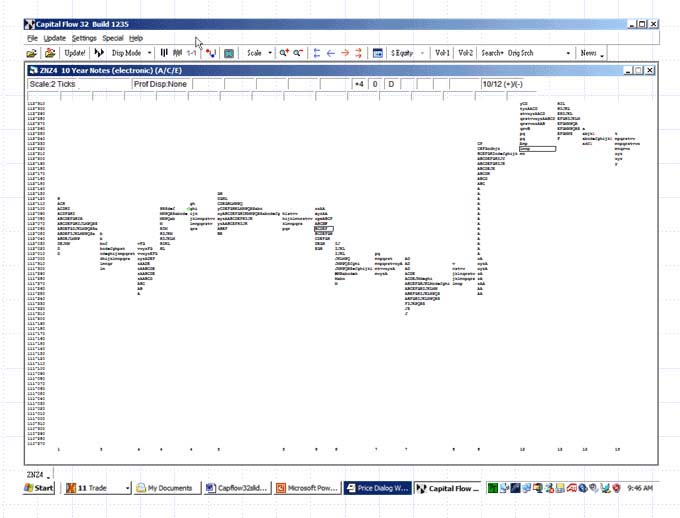

How does the Market Profile™ develop? The industry standard 30-minute display takes half-hour ranges and assigns consecutive letters of the alphabet to the ranges. The first half-hour range of the profile is assigned a chronological letter and the array of prices encompassed within that half hour range are displayed along the y-axis. As consecutive half hour arrays are added to the display with their corresponding range of prices and assigned letters; repeated prices move one column to the right and price probes expanding to new highs or new lows continue to occupy the left most column of the display. What is uncovered over time is a Market Profile™ display with the belly representing the frequently traded prices and the thinner part(s) of the profile representing areas of decreased frequency of trade.

What does a Market Profile™ look like? A Market Profile™ can take on many appearances. The standard display takes on the look of a normalized bell curve with the preponderance of letters near the middle of the displayed range and less letters or TPOs as you move towards the extremes (see figure 1 below).

market profile normal bell curve
figure 1: Normal Bell Curve

Over time as markets have evolved to become more efficient with locals and specialists impacting the market less and less, a hybrid Market Profile™ has evolved. The characteristics of this hybrid are a preponderance of letter’s or TPOs near one of the vertical extremes, and price rejection at the other extreme (see figures 2 and 3 below).

3:2:1 up

Figure 2: 3:2:1 up

3:2:1 down

Figure 2: 3:2:1 down
